RAK WisBlock DIY Meshtastic Starter Kit – Kit including Battery, OLED and FREE IO Module

Meshtastic is an off-grid messaging system using inexpensive hardware to create your mesh. Radios forward messages to the next node to distribute them over the network. Communicate kilometers/miles between nodes. Internet-connected relay nodes enable the conversation to move online too.

Select additional modules to go with your Meshtastic Starter Kit.

Features:

• RAK4631 Nordic nRF52850 WisBlock Core module, pre-flashed with the Meshtastic firmware
• RAK19007 WisBlock Base Board, 30x60mm with 4 sensor slots and 1 IO slot

• WisBlock Module bundles, based on Meshtastic network roles
• Meshtastic Basic and Router-Repeater Role
  • No additional modules
• Meshtastic Client Role
  • RAK1921 OLED display
• Meshtastic Tracker Role
  • RAK12500 GNSS location module
  • RAK1904 acceleration sensor
• Meshtastic combined Client-Tracker Role
  • RAK12500 GNSS location module
  • RAK1904 acceleration sensor
  • RAK1921 OLED display
• Meshtastic Router-Repeater Role with Ethernet & PoE
  • RAK13800 Ethernet Module
  • RAK19018 Ethernet PoE Module

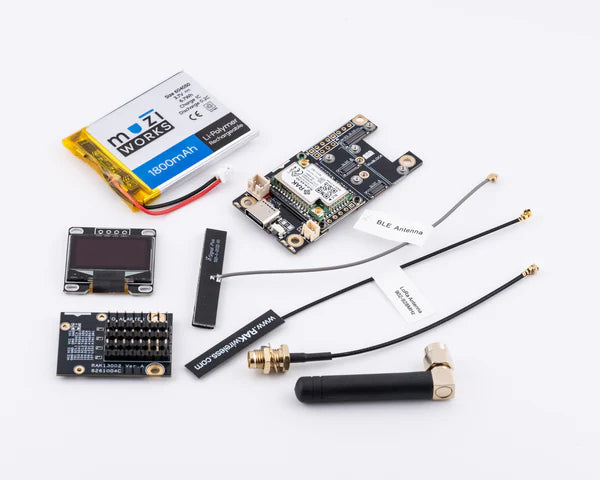

Includes

• 1pc WisBlock Base
• 1pc WisBlock Core

• 1pc PCB LoRa Antenna
• 1pc BLE Antenna

• Assembly Screws
• USB-C to USB-A Cable
• SMA-RP Pigtail Cable 9cm
• SMA-RP Stubby Antenna
• 604050 1800mAh Battery
• RAK OLED Display SSD1306
• RAK IO Module
