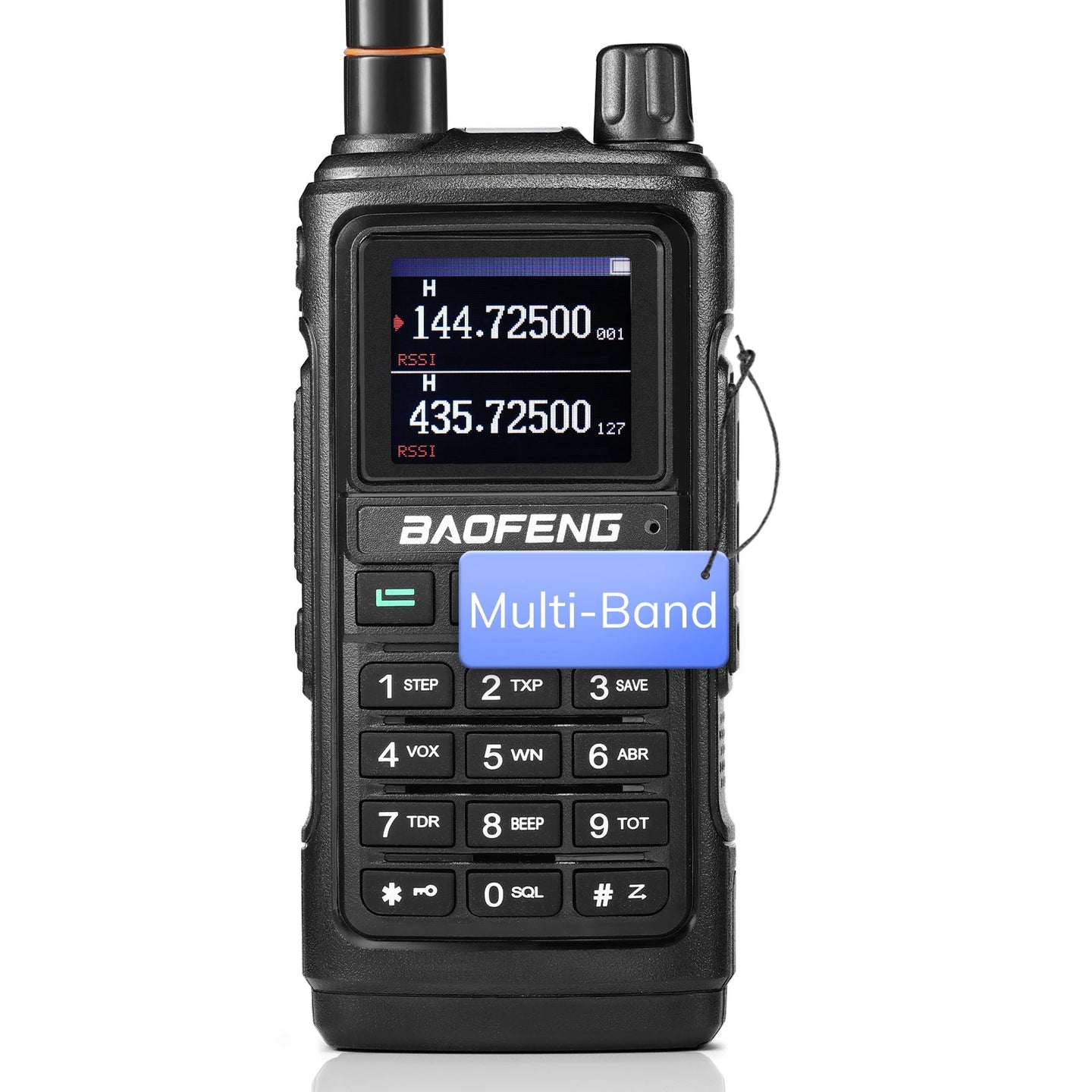

Upgraded Version of UV-17R: UV-17R Plus brings you ❶ an expanded receiving frequency band, encompassing the aviation and police bands, ❷ an extended battery boost from 1800mAh to 2500mAh, complemented by convenient USB-C charging. Safeguard your conversations with our ❸ new voice scrambler function.
Versatile Frequency Coverage: Receiver Frequency: FM 76-108 MHz; AM 108-136MHz; VHF 136-174MHz, 220-260MHz; UHF 350-390MHz,400-520MHz; 10 NOAA Weather Band. Transmission Frequency: 144-148 & 420-450MHz.
Frequency Scan & Copy: Enable this radio's scan function, and place it near the radio you want to scan, upon radio transmission, UV-17R Plus will display the frequency(±2.5 PPM), CTCSS or DCS tones, or ‘NONE’ if CTCSS or DCS is absent.
Wide and Narrow Bandwidth Options: Select between 12.5KHz and 25KHz wide band, or narrow band settings for compatibility and flexibility in various communication scenarios.
Feature-Rich Design: Revel in the plethora of features including 999 channels, 104 CDCSS, 50 CTCSS, a vibrant 1.77'' TFT color display, adjustable VOX and squelch levels, and a simplified DTMF setup, all powered by the enduring 2500mAh battery. FCC ID: 2AJGM-UV17.
SPECIFICATIONS:
- Receiver Frequency: FM 76-108 MHz; AM 108-136MHz;
- VHF 136-174MHz, 220-260MHz;
- UHF 350-390MHz, 400-520MHz
- Transmission Frequency:
- 144-148 & 420-450MHz(American version)
- 144-148 & 430-450MHz (Canadian version)
- Channel Spacing: 25.0KHz(Wide) / 12.5KHz(Narr)
- Memory Channel: 999 Groups
- Operation Voltage: DC 7.4V±10%
- Transmission current: ≤1600mA
- Receive Sensitivity: 0.25μV (12dB SINAD)
- Rated Audio Power Output: 1W @16 ohms
- Receive Current: ≤380mA
- Connection for Accessories: 2-pin Kenwood jack
- Antenna Impedance: 50 Ohm
STANDARD ANTENNA:
- Antenna Gain: 2.0 dBi
- Antenna SWR: ＜1.2
- Frequency: 136-174/400-520 MHz
- Antenna Connector Type: SMA-Female
- Max Power: 10 Watts
- Length: 8.3’’ / 210 mm
WHAT’S IN THE BOX?
- UV-17R PLUS Two-way radio x 1
- Li-ion Battery x 1
- Standard Antenna x 1
- Belt Clip x 1
- Wrist Strap x 1
- Headset x 1
- Type-C Charging Cable x 1
- User Manual x 1
- Adapter x 1
- Regular price
- $36.99
Shipping not available. Purchase online for local pickup.
